Road Roller
SLRR1000
General Information

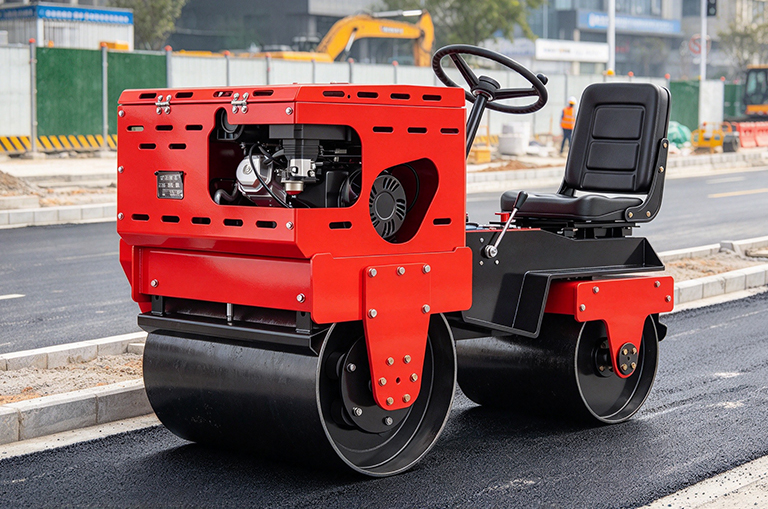

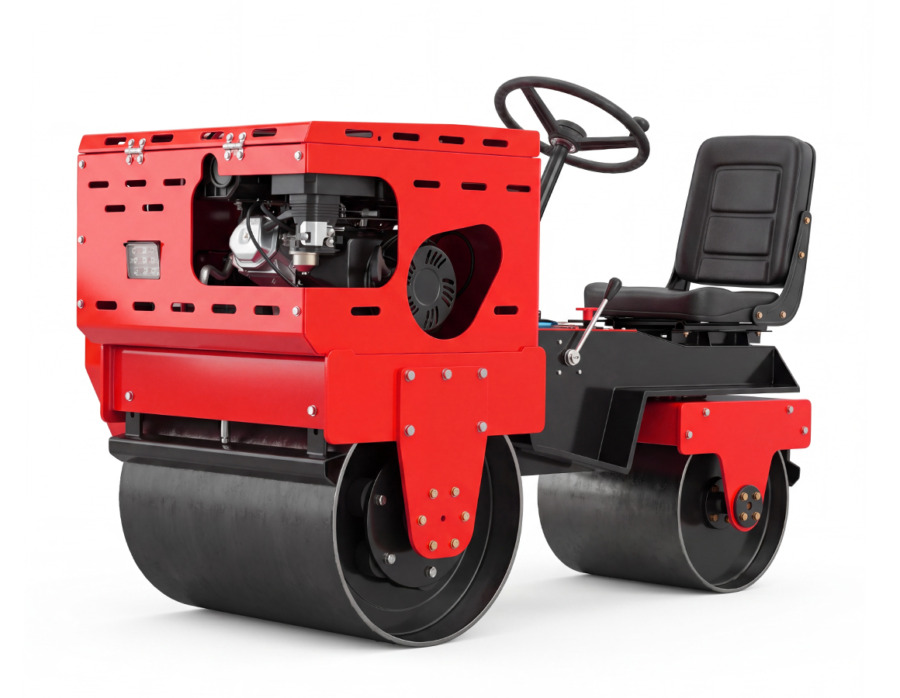

A compact single-drum roller with twin vibration frequencies and a 60 L water tank for continuous spraying. The articulated frame turns tightly against kerbs and walls.
Placeholder model — replace the name, text and specification values with your own.
Technical Specifications
| Operating Weight | 560 kg | ||
|---|---|---|---|
| Centrifugal Force | 35 kn | ||
| Amplitude | 0.6 mm | ||
| Vibration Frequency | 70 hz | ||
| Travel Speed | 0-6 km/h | ||
| Gradeability | 30 % | ||
| Overall Dimensions | 1800*850*1250 mm | ||
| Drum Size | Drum Length 800, Diameter 560 mm | ||
| Engine Model | Runtong R420 | ||
| Emission Standard | EPA / EURO 5 | ||
| Engine Power | 8.5 kw / 3600 r/min hp/kw | ||
| Drive Mode | Single-drive Hydraulic | ||
| Vibration System | Full Hydraulic | ||
| Engine Oil Refill Volume | 1.1 L | ||
|---|---|---|---|
| Fuel Type | Gasoline | ||
| Fuel Grade | 92# (RON 92) | ||
| Fuel Tank Capacity | 6.5L (Engine-mounted Tank) L | ||
| Water Tank Capacity | 16.5 L | ||
| Hydraulic Oil Tank Capacity | 8 L | ||
