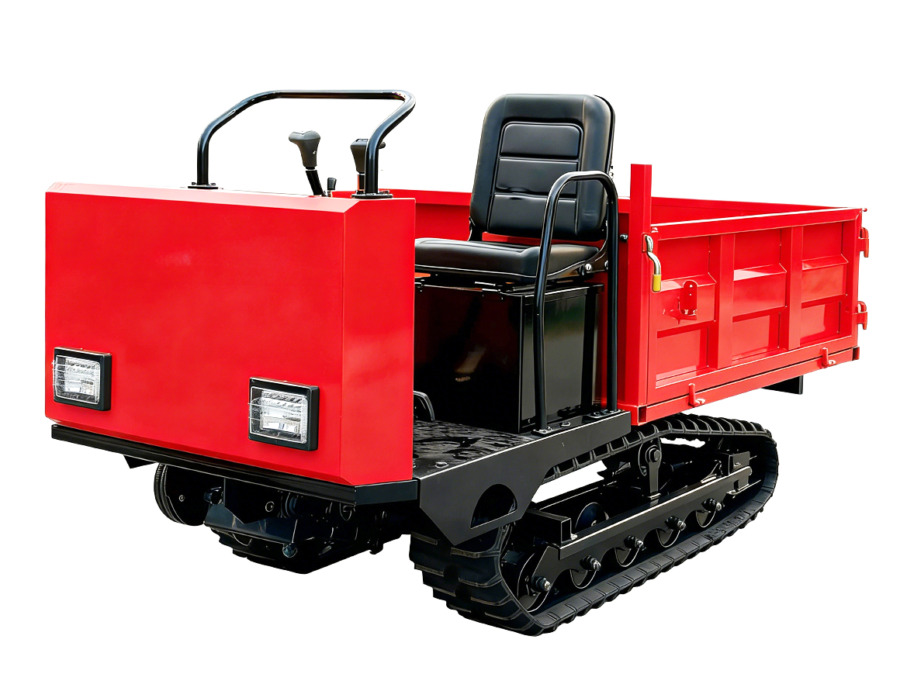

Crawler Dumper
SLD25
General Information
A mid-size tracked dumper built for daily hauling on construction sites. The swivel skip lets the operator discharge to either side without turning the machine, and the sealed undercarriage keeps maintenance intervals long.
Placeholder model — replace the name, text and specification values with your own.
Technical Specifications
| Load Capacity | 2 T | ||
|---|---|---|---|
| Curb Weight | Approx. 1.4 T | ||
| Transmission Model | Guli-21 | ||
| Overall Dimensions (L×W×H) | 3350*1600*1550 mm | ||
| Cargo Box Dimensions (L×W×H) | 2200*1600*560 mm | ||
| Track (Model) | 350*90*56 mm | ||
| Track Type | Agricultural Rubber Track | ||
| Ground Contact Length | 1730 mm | ||
| Max. Travel Speed | 10 km/h | ||
| Min. Travel Speed | 3 km/h | ||
| Chassis width | 1550 mm | ||
| Engine Model | Bailitong EPA | ||
| Engine Cylinders | Twin-cylinder (Air-cooled) | ||
| Power | 23 HP | ||
| Cooling Method | Water-cooled | ||
| Gradeability | 35° | ||
| Gear | 6 Forward + 2 Reverse | ||
| Self-unloading Function | Single Hydraulic Cylinder Rear-Tipping Dump Bucket | ||
| Lifting Height | Within 2m (from cargo box bottom to ground) | ||
| Lifting Weight | Approx. 1.5T | ||
