Mini Excavators

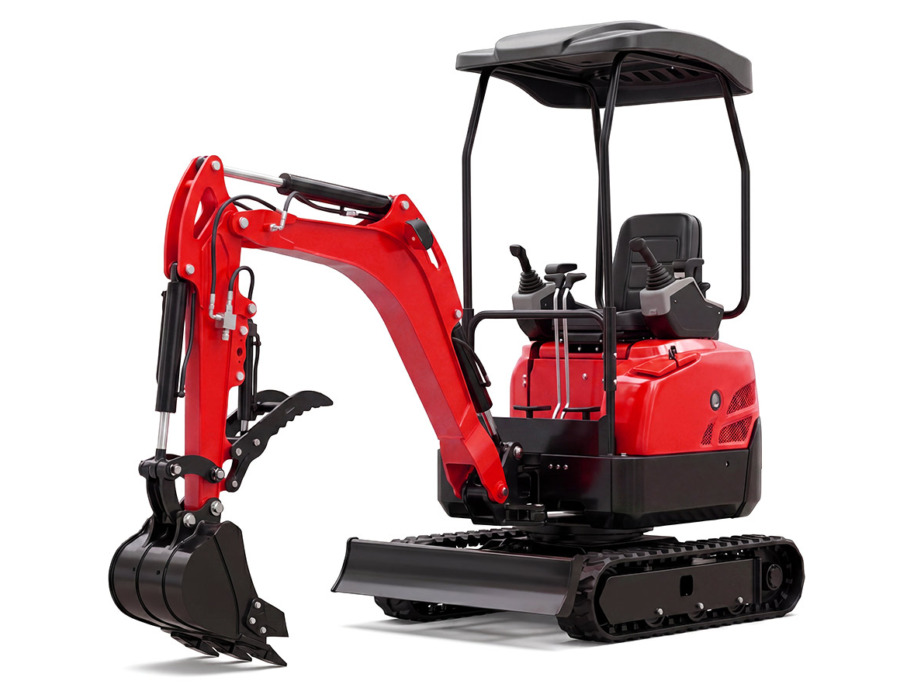

SLE20
Technical Specifications
| Engine Brand | Kubota D722 | ||
|---|---|---|---|
| Rated Power | 10.2 kw | ||
| Cab | Sunshade Canopy | ||
| Pedrail | Rubber Track | ||
| Accessories | Toolbox | ||
| Overall weight | 0.95 t | ||
|---|---|---|---|
| Digging Bucket Capacity | 0.02 m³ | ||
| Bucket Width | 350 mm | ||
| Traveling Motor | Ruili/Lipton | ||
| Travel Speed | 0-1.8 km/h | ||
| Swing Motor | Ruili/Lipton | ||
| Swing Speed | 8 r/min | ||
| Hydraulic system | Gear pump: Tianjin walking, Integrated multi way valve: Taiheng | ||
| Body Swing Radius | 700 mm | ||
| Body Swing Angel | 360° | ||
| Boom Swing Angel (L/R) | 45°/45° | ||
| Max. Grade Ability | 15 % | ||
| Fuel Tank | 11 L | ||
| Hydraulic Oil Tank | 11 L | ||
| Max. Digging Radius | 2740 mm | ||
|---|---|---|---|
| Max. Digging Depth | 1570 mm | ||
| Max. Digging Height | 2967 mm | ||
| Max. Unloading Height | 2192 mm | ||
| Min. Swing Radius | 716 mm | ||
| Max. Digging Depth Of Dozer Blade | 156 mm | ||
| Max. Lifting Height Of Dozer Blade | 150 mm | ||
| Option | Engine, Cab, Track, Telescopic Chassis, Air Conditioning, High And Low Speed Motors | ||
|---|---|---|---|
