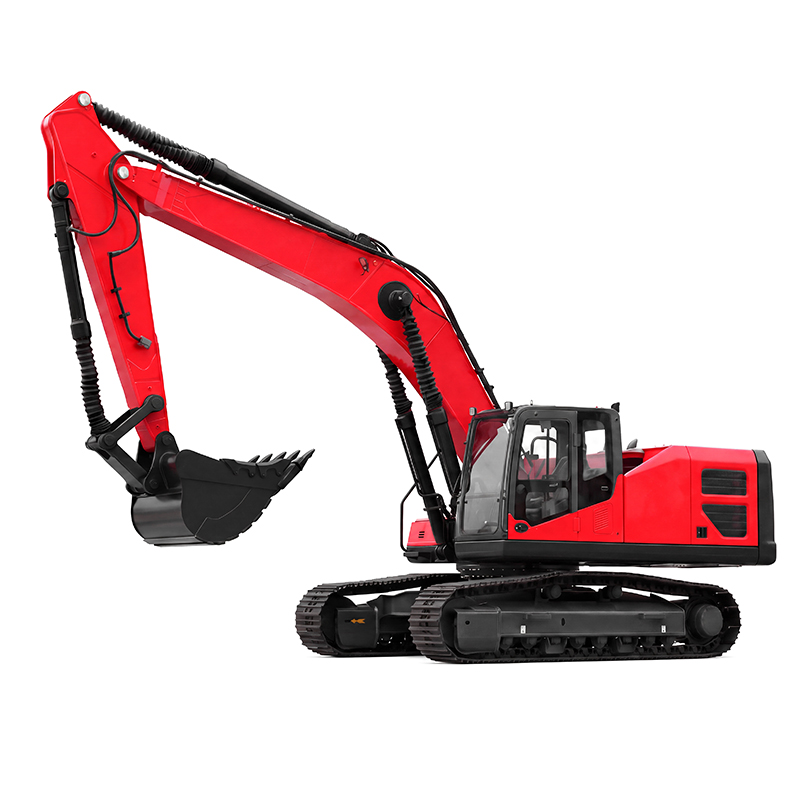

Large Excavator
SLE335
Technical Specifications
| Operating weight | 33 t | ||
|---|---|---|---|
| Bucket capacity | 1.4-1.6 m³ | ||
| Engine model | CUMMINS QSL8.9 | ||
| Rated power | 242/2000 kw/r/min | ||
| Fuel tank capacity | 595 L | ||
| Travel speed | 5.2/3.5 km/h | ||
| Swing speed | 10.6 r/min | ||
| Gradeability | 70 % | ||
| Bucket digging force | 227 kN | ||
| Arm length | 3185 mm | ||
| Boom length | 6470 mm | ||
| Ground pressure | 65 kPa | ||
| Hydraulic oil tank capacity | 310 L | ||
| Overall length | 11080 mm | ||
|---|---|---|---|
| Overall width | 3190 mm | ||
| Overall height (boom top) | 3360 mm | ||
| Overall height (cab top) | 3170 mm | ||
| Counterweight ground clearance | 1210 mm | ||
| Minimum ground clearance | 498 mm | ||
| Tail swing radius | 3560 mm | ||
| Maximum digging height | 10200 mm | ||
|---|---|---|---|
| Maximum unloading height | 7135 mm | ||
| Maximum digging depth | 7370 mm | ||
| Maximum vertical wall digging depth | 6380 mm | ||
| Maximum digging reach | 11100 mm | ||
| Maximum digging reach at ground level | 10910 mm | ||
