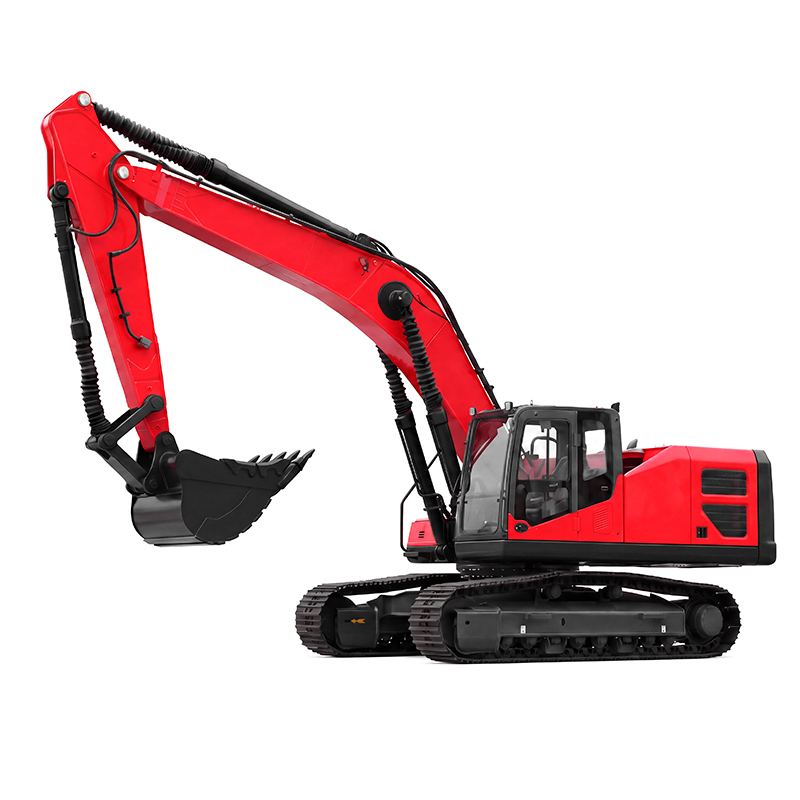

Large Excavator
SLE390
Technical Specifications
| Operating weight | 37.5 t | ||
|---|---|---|---|
| Bucket capacity | 1.6-1.9 m³ | ||
| Engine model | ISUZU 6HK1X | ||
| Rated power | 212/2000 kw/r/min | ||
| Fuel tank capacity | 595 L | ||
| Travel speed | 5.2/3.3 km/h | ||
| Swing speed | 8.5 r/min | ||
| Gradeability | 70 % | ||
| Bucket digging force | 256 kN | ||
| Arm length | 2900 mm | ||
| Boom length | 6470 mm | ||
| Ground pressure | 70.8 kPa | ||
| Hydraulic oil tank capacity | 310 L | ||
| Overall length | 11150 mm | ||
|---|---|---|---|
| Overall width | 3190 mm | ||
| Overall height (boom top) | 3480 mm | ||
| Overall height (cab top) | 3170 mm | ||
| Counterweight ground clearance | 1210 mm | ||
| Minimum ground clearance | 495 mm | ||
| Tail swing radius | 3560 mm | ||
| Maximum digging height | 9800 mm | ||
|---|---|---|---|
| Maximum unloading height | 6830 mm | ||
| Maximum digging depth | 6890 mm | ||
| Maximum vertical wall digging depth | 6000 mm | ||
| Maximum digging reach | 10800 mm | ||
| Maximum digging reach at ground level | 10600 mm | ||
