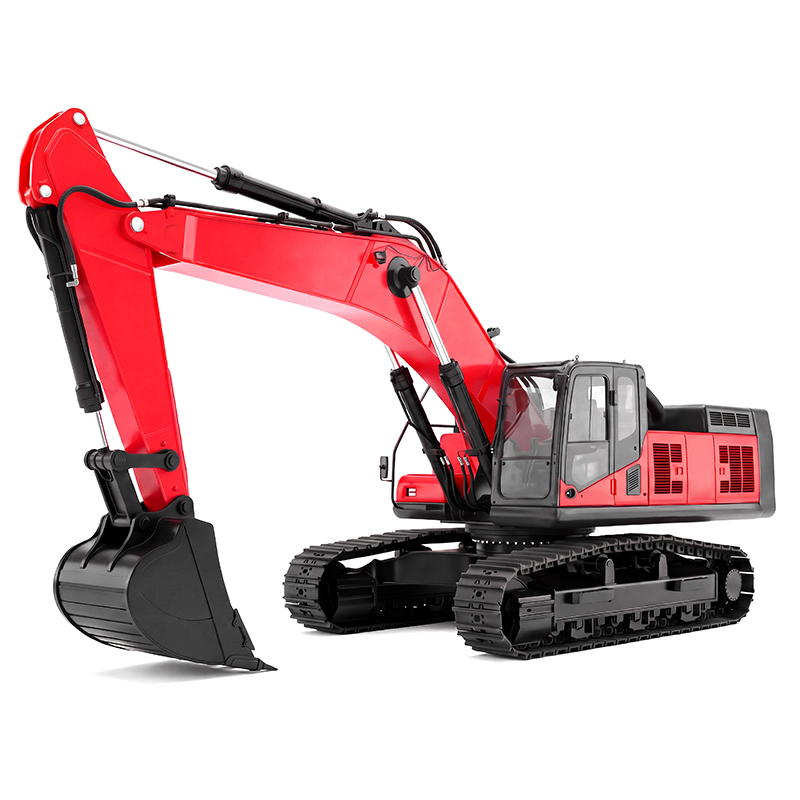

Large Excavator
SLE520
Technical Specifications
| Operating weight | 51.5 t | ||
|---|---|---|---|
| Bucket capacity | 2.8-3.6 m³ | ||
| Engine model | CUMMINS QSM11 | ||
| Rated power | 299/1800 kw/r/min | ||
| Fuel tank capacity | 650 L | ||
| Travel speed | 4.8/3.0 km/h | ||
| Swing speed | 8.6 r/min | ||
| Gradeability | 70 % | ||
| Bucket digging force | 298 kN | ||
| Arm length | 2550 mm | ||
| Boom length | 6560 mm | ||
| Ground pressure | 86 kPa | ||
| Hydraulic oil tank capacity | 335 L | ||
| Overall length | 12100 mm | ||
|---|---|---|---|
| Overall width | 3340 mm | ||
| Overall height (boom top) | 4230 mm | ||
| Overall height (cab top) | 3265 mm | ||
| Counterweight ground clearance | 1300 mm | ||
| Minimum ground clearance | 720 mm | ||
| Tail swing radius | 3900 mm | ||
| Maximum digging height | 10000 mm | ||
|---|---|---|---|
| Maximum unloading height | 6760 mm | ||
| Maximum digging depth | 6260 mm | ||
| Maximum vertical wall digging depth | 5620 mm | ||
| Maximum digging reach | 10580 mm | ||
| Maximum digging reach at ground level | 10360 mm | ||
