Forklifts

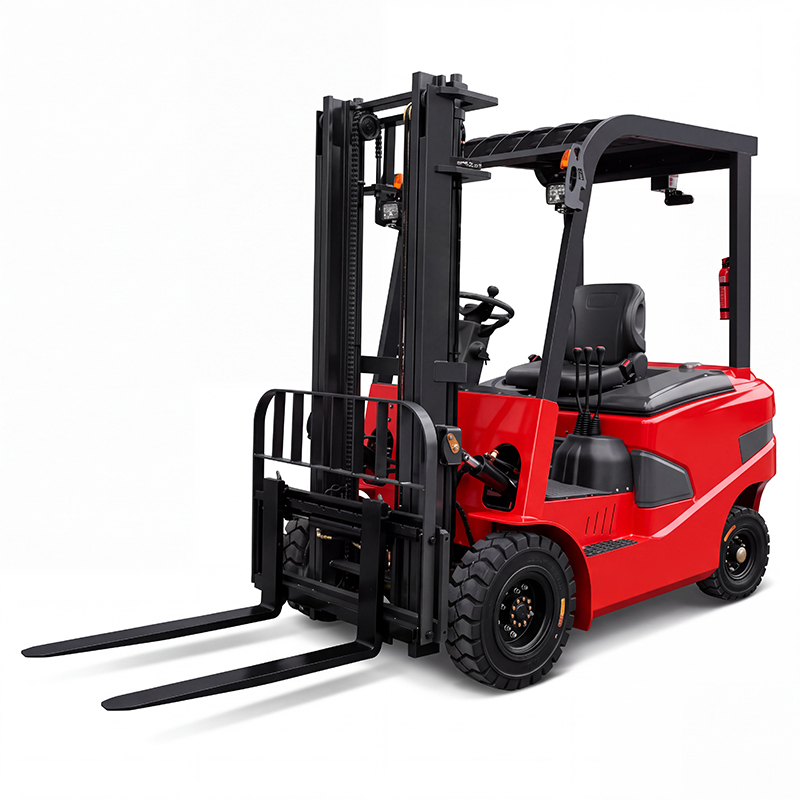

SLF2000
Technical Specifications
| Power unit | Electric | ||
|---|---|---|---|
| Operation | Seated on | ||
| Rated traction weight | 2000 kg | ||
| Load centre | 500 mm | ||
| Axle centre to fork face | 480 mm | ||
| Wheel base | 1450 mm | ||
| Service weight with battery | 2700 kg | ||
| Wheels type | Pneumatic | ||
| Driving wheel size | 650-10-10PR mm | ||
| Bearing wheel size | 500-8-10PR mm | ||
| Wheels, number front/rear | 2×2/ | ||
| Track width b10 | 960 mm | ||
| Track width b11 | 910 mm | ||
| Mast/fork carriage lift, forward/backward | 6/6° | ||
| Height of mast, lowered | 2150 mm | ||
| Free lift | 1225 mm | ||
| Lift | 3000 mm | ||
| Height of mast, extended | 4075 mm | ||
| Height of overhead guard | 2140 mm | ||
| Height of seat/stand-on platform | 1100 mm | ||
| Towing coupling height | 370 mm | ||
| Overall length | 3370 mm | ||
| Length to fork face | 2300 mm | ||
| Overall width | 1070/1220 mm | ||
| Fork dimensions | 40/100/1070 mm | ||
| Width of fork carriage | 100 mm | ||
| Min.Ground clearance | 80 mm | ||
| Aisle width with pallet 10001200 across forks Ast | 3970 mm | ||
| Aisle width with pallet 8001200 along forks Ast | 4100 mm | ||
| Min.Turning radius | 2350 mm | ||
