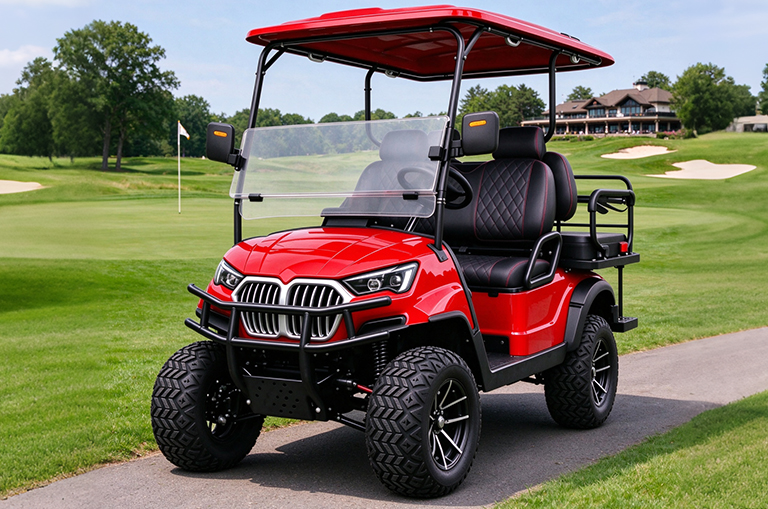

Golf Carts
SLGC02
Technical Specifications
| Outside Dimension | 2450*1350*2000 mm | ||
|---|---|---|---|
| Passengers Capacity | 2 | ||
| Max.Speed | 40km & 25mph/h | ||
| Max.Travelling Range | 80-100 km | ||
| Slope Climbing Capacity | 30% | ||
| Turning Radius | 3 m | ||
| Ground Clearance | 150 mm | ||
| Brake Distance | $\le$4 m | ||
| Wheelbase | 1690 mm | ||
| Front /Rear Tread | 940/1030 mm | ||
| Weight | 500 g | ||
| Tire | 20*10-12,with aluminium alloy wheel rim | ||
| Motor | 4kw,5kw,7.5kw | ||
|---|---|---|---|
| Controller | 48V, 60V, 72V | ||
| Battery Type | Lead acid battery、Lithium iron phosphate battery | ||
| Charger | Intelligent high-frequency car charger | ||
| Charging Time | 6-8 hours | ||
| Braking System | Front/Rear Disc Brake,EMB system | ||
|---|---|---|---|
| Front Axle and Suspension | Independence suspension | ||
| Rear Axle and Suspension | Torsion beam | ||
| Steering | Rack &Pinion Steering | ||
| Display | LCD instrument,show time,speed,driving range, battery capacity,etc | ||
|---|---|---|---|
| Light | Front &rear combination LED lights | ||
| Seat | Bus cold foam sponge +high-resilience PU leather fabric | ||
| Body Material | Steel frame +ABS engineering plastic moldingmaterial | ||
