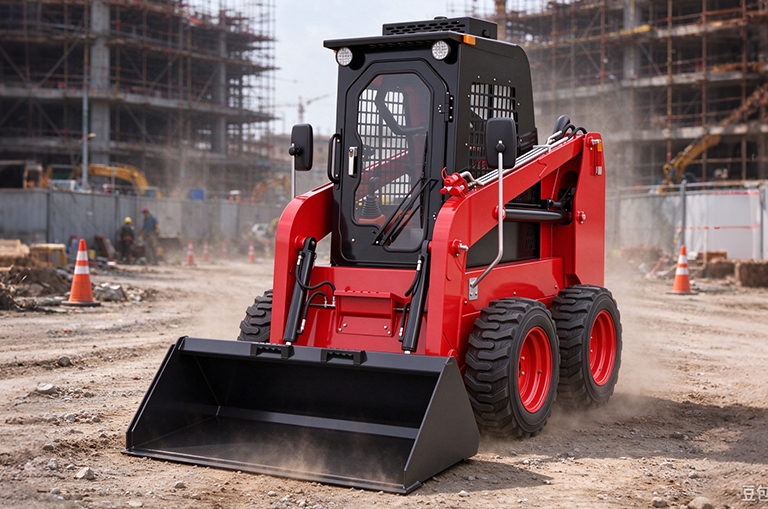

Skid Steer Loaders
SLLA700
Technical Specifications
| Operating load | 700 kg | ||
|---|---|---|---|
| Max Speed | 10 km/h | ||
| Rated flux | 80 L/min | ||
| Tire (track) model | 10-16.5NHS | ||
| Rated power | 36.7KW kw | ||
| Fuel tank capacity | 70 L | ||
| dead weight | 2916 KG | ||
| self weight bucket | 3766 KG | ||
| Bucket capacity | 0.4 m³ | ||
| Overall operating height | 3560 mm | ||
|---|---|---|---|
| Height to bucket hinge pin | 2765 mm | ||
| Hheight to top of cab | 2230 mm | ||
| Height to bottom of level bucket | 2909 mm | ||
| Without bucket length | 2325 mm | ||
| Overall length with bucket | 3276 mm | ||
| Dumping angle at maximum height | 37.5 ° | ||
| Dumping height | 2342 mm | ||
| Dumping reach | 550 mm | ||
| Rollback o bucket on ground | 20.5 ° | ||
| Rollback of bucket at full height | 96.5 ° | ||
| Wheelbase | 991 mm | ||
